The Duo Max waste kit is designed for easy installation to the R3000 and P600 (SCP600) in a way that allows the process to be reversed (with care).

The kit contains an extended length double waste ink tube that can also be used on the R1800, R2400, RX700, etc... (although the standard Duo is just as suitable for the other models - and cheaper)

Note: Not compatible with printers that use a single waste tube

IMPORTANT:
This product listing does not include the means to reset your printers waste ink counter. It is intended for customers who have or who intend to source the necessary reset utility/service themselves.
Click here for this Waste Kit + Reset Key bundle

Design Features:

• 70cm (approx 27.5") double connector tube
• The valve closes automatically when the waste tube connector is unscrewed
• A tight liquid proof seal around the fitting stops any leakage
• Simple to install, easy to maintain.
• Tanks are all re-usable after emptying

Box Tank:

• Vent hole to allow any air out automatically (No need to vent a bag regularly).
• The location and size of the vent hole allows for accidents as the waste tank can effectively fall and hang from the waste tube with minimal, if any, spillage.

Compatibility:

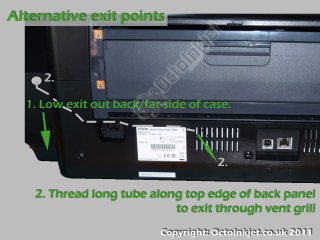

This product is intended primarily for the Photo Stylus R3000, particular those wishing to direct the waste tube through the grill at the rear of the printer.

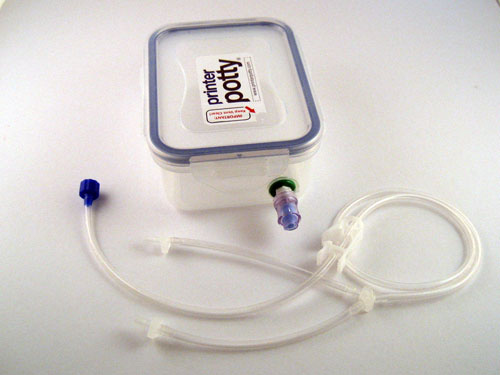

Product Specification

• Pre-fitted valve, and liquid-tight fitting
• Extension/Connection tube, pre-assembled with:
  • Tygon tubing 70cm (minimum) total length (custom lengths available on request)
  • 1x Tube clamp
  • 2x Barbed tube connectors (one for each waste tube)
  • 1x Y-connector (redirects waste flows into a single external tube)
• 350ml rigid Box Tank
• Comprehensive printed instruction manual for installation

Boxes and Bag tanks are all interchangeable thanks to the valve/connection system used
NB: Box tank only supplied with this kit.
